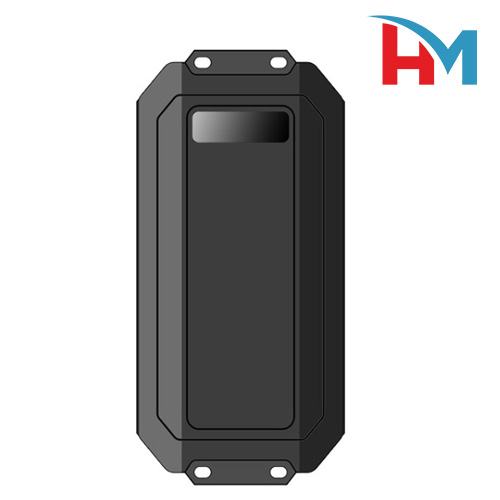

Physical

Dimension

154X82X30mm(L*W*H)

Weight

490±5g

Cellular

Cellular module

Quectel BG95

Frequency

Working frequency:

CatM1:LTEFDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

• EGPRS: 850/900/1800/1900MHz

protocol: Embedded TCP/IP stack

Sensitivity:    -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power:  Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

Processor

ST

Motion sensor

DA260

Wifi position

Wifi 5.0

Bluetooth

Bluetooth 5.1

Power

Battery

Disposable Lithium-ion battery and (3.7V,12000mAh)

and ultra-low discharge rate:less than 1%, store one year below 25?

Power consumption

Average working current <100mA; Power save current 7uA;

GSM antenna

Internal High Gain

GPS antenna

Internal High Gain

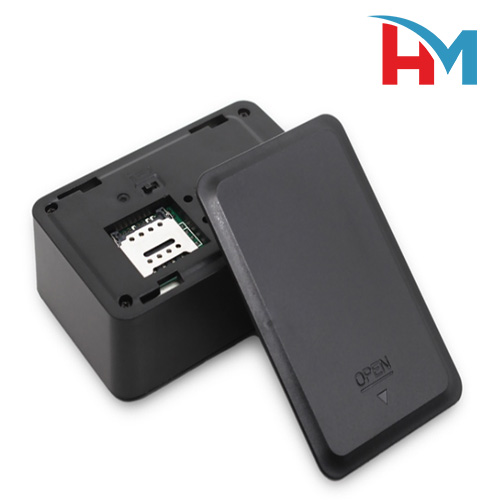

SIM

Microsim

Indicator

3 status LEDs, Green: GPS, Battery level: Blue: Red: Celluar

Environmental Parameter

Working Temperature

-30? ~ +80?

Humidity

5% ~ 95% (no fog)

Ingress Protection Rating

IP67
